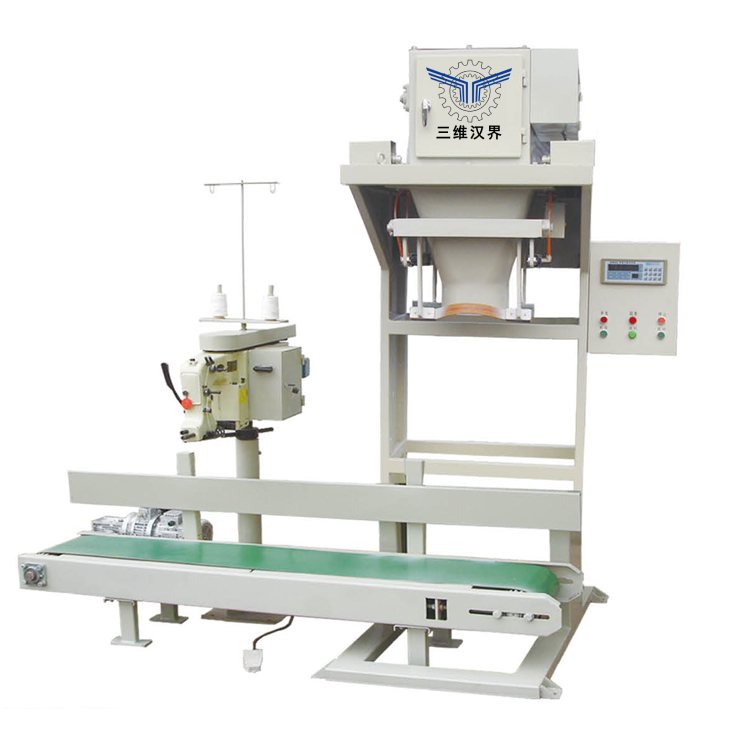

Bucketless Scale for Particulate Material Packaging

Product Introduction of DCS-Z-W Gravity Feeding Quantitative Packaging Machine for Particulate Material Packaging without Bucket Scale

With the rapid development of modern science and technology and the increasing improvement of packaging technology, higher requirements are put forward for material packaging. It requires not only high speed and precision, but also automation, and even different packaging forms. Our company produces granular packing scale DCS-Z-W, which is a fast quantitative packaging unit integrating weighing, seaming, packaging and transportation. It has been welcomed by users for many years. Widely used in light industry, chemical industry, metallurgy, building materials, ports, mines, food, food and other industries.

Principle of DCS-Z-W Gravity Feeding Quantitative Packaging Machine for Particulate Material Packaging without Bucket Scale

DCS-Z-W granular quantitative packaging scale needs manual bagging, manual bagging of bags into the lower outlet, switching the bag clamping switch, the control system receives bagging signal and drives the cylinder. The bag clamping device clamps the bags. At the same time, the feeding mechanism starts to feed the materials into the packaging scale. The feeding mechanism stops when the target weight is reached, and the bag clamping device opens automatically. Packaging bags fall on the conveyor automatically. The conveyor conveys the packed bags backward for manual auxiliary seam opening. The seam outlet backward outputs to complete a bag filling process.

Functional Characteristics of DCS-Z-W Gravity Feeding Quantitative Packaging Machine without Bucket Scale for Particulate Material Packaging

The non-bucket scale for packing granular materials needs manual assistance in bagging, automatic weighing, bag clamping, filling, automatic conveying and sewing.

Gravity feeding method is adopted to ensure the cutting speed and accuracy through instrument control.

Solve some special chemical raw material packaging problems, wide range of application, simple operation;

With high precision sensor and intelligent weighing controller, the measurement accuracy is high and the performance is stable.

The contact part with the material is made of stainless steel with high corrosion resistance.

Electrical and pneumatic components are imported components with long service life and high stability.

The control cabinet is sealed and suitable for harsh dust environment.

Automatic correction of material overshoot, automatic zero tracking, overshoot detection and suppression, alarm of overshoot and undershoot;

Optional automatic sewing and wrapping thread breaking function: photoelectric induction automatic sewing and wrapping after pneumatic shearing, saving labor.

Technical Parameters of DCS-Z-W Gravity Feeding Quantitative Packaging Machine for Particulate Material Packaging without Bucket Scale

Model Specification: DCS-Z-W

Weighing range: 5-50kg

Grading value: 10g

Weighing accuracy: 0.2% F, S

Weighing speed: 200-300 bag/h

Working environment: relative humidity ≤ 90%

Power supply: AC380V 50Hz

Power: 1.3KW

Air pressure: 0.4-0.8 Mpa

Air consumption: 1m³/h
