Full-automatic open bag packing machine

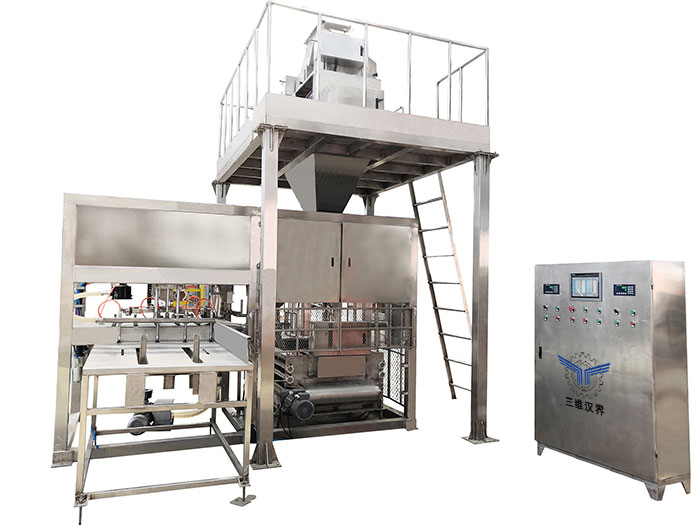

SW-ABF Full-automatic Open Bag Packing Machine

The full-automatic open bag packing machine is usually also known as a full-automatic packing machine. The equipment operates automatically: the packaging bags are automatically sorted, loaded, weighed, filled, folded, and sealed. The entire process is automatically controlled by PLC and does not require manual intervention. According to the different characteristics of the materials, the equipment adopts gravity, spiral, and belt feeding weighing methods, which can meet the automatic packaging requirements of the vast majority of bagged materials.

Features:
Packing Speed: 400-1000bag/h
Packing specifications: 25-50kg/bag

Technical Parameters

Model Type	SW-ABF-2-800	SW-ABF-600
Name	Full-automatic pellet packing machine	Full-automatic powder packing machine
Packing Range	25-50kg	25-50kg
Packing Speed	400-1000bags/h	400-600bags/h
Packing Material	particle	powder
Quantify precision	0.2%F、S	0.2%F、S
Packaging bag	Woven/paper bags	Woven/paper bags
Feeding method	Determined by materials	Determined by materials
Compressed Air	0.4-0.8MPa, 1.6m³/min	0.4-0.8MPa, 1.6m³/min
Power Supply	11kw/h, AC380V 50Hz	11kw/h, AC380V 50Hz
