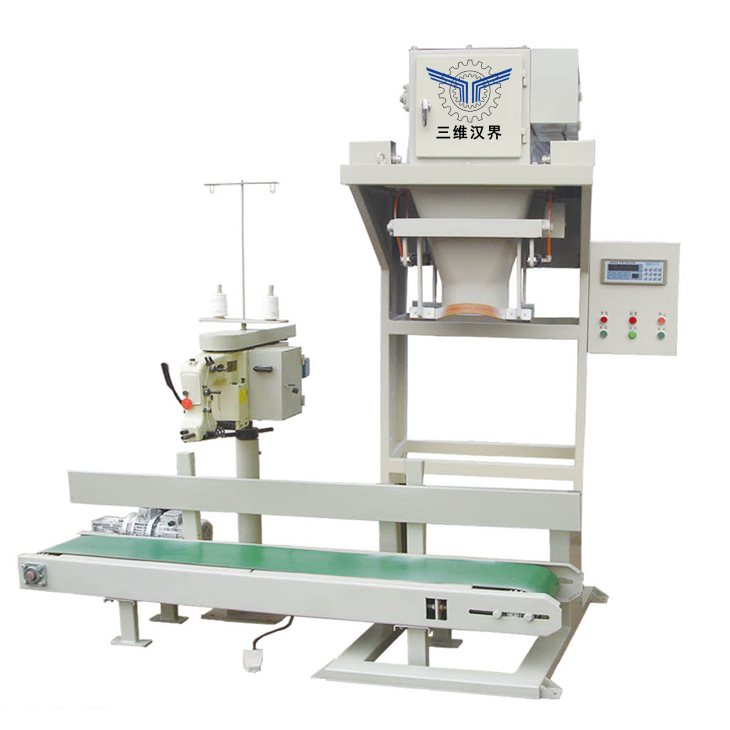

Semi-automatic packing machine without hopper

Product Details

---

The manual bagging machine mainly consists of an automatic weighing device, an automatic folding machine, an automatic sealing machine, and an automatic conveyor. The equipment requires manual hanging bag, and then the packing machine completes the automatic weighing of the materials. After the weighing is completed, the materials are automatically filled into the packing bags. The conveyor transports the filled packaging bags to the folding machine, While the folding machine is folding, the sewing machine automatically sewing the bag. The conveyor transports the packaging bags to the palletizing area. The entire process only requires one worker to manually hanging bag, and all other work is independently completed by the automatic quantitative packaging machine. Our company's automatic quantitative packaging machine has high packaging accuracy, fast packaging speed, high automation level, and can be used for automatic packaging of various materials. Since its launch, it has been welcomed and loved by many customers.

Features

1. Adopt advanced microcomputer control instruments;
2. Automatic correction of packaging errors, out-of-tolerance alarms, and automatic diagnosis of fault sources during the packaging process;
3. The parts in contact with the material are made of stainless steel and have a long service life;
4. A printer interface is reserved, which can print production data such as the number of installations and total weight;
5. Double-speed feeding is realized through automatic instrument control to ensure the weighing speed and accuracy;
6. Manual hanging bag, dual-cylinder holding, high degree of automation, reliable work, and simple operation;
7. The instrument has high sensitivity, fast sampling speed, strong software function, standard interface, and can communicate with the computer;
8. The control cabinet adopts a sealed form and is suitable for harsh dust environments.

Technical Parameters



Machine Type	DCS-Z-W
Automatic Grade	Semi-automatic
Packing Range	5-50KG
Packing Speed	200-300 bags/h
Application	Granule
Weighing Accuracy	0.2%F、S
Packing Bags	Woven bag/Paper bag
Feeding Method	Gravity feed
Power	1.3KW/H, AC380V 50HZ
Air consumption	0.4-0.8MPa, 3m3/min
