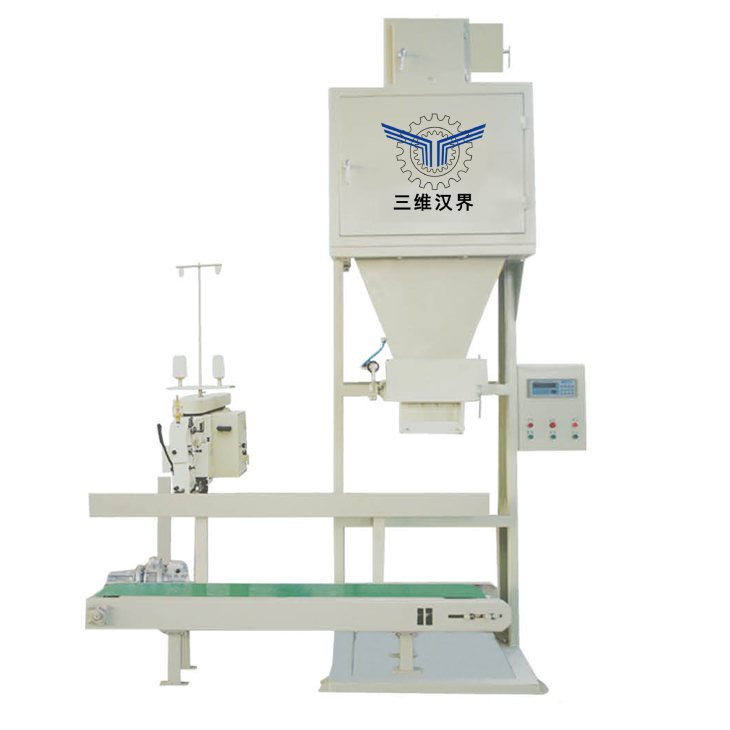

Particulate Material Packaging Single Bucket Scale

Product Introduction of DCS-Z-S Gravity Feeding Quantitative Packaging Machine for Particulate Material Packaging

The DCS-Z-S single bucket scale for packing particulate materials produced by our company has high speed and accuracy. It is a fast quantitative packaging unit integrating weighing, seaming, packaging and transportation. The weighing accuracy is not affected by the external environment, and its stability is high. It has been unanimously recognized by the majority of users for many years. Particulate material packaging single bucket scale is widely used in light industry, chemical industry, metallurgy, building materials, ports, mines, food, grain and other industries.

Working Principle of DCS-Z-S Gravity Feeding Quantitative Packaging Machine for Particulate Material Packaging

Quantitative packing scale for particulate materials needs manual bagging, manual bagging of bags into the lower outlet, switching the bag clamping switch, the control system receives the signal of bagging, drives the cylinder to drive the bag clamping device to clamp the bag, and starts the feeding mechanism to feed the materials in the bin into the weighing hopper. After reaching the target weight, the feeding mechanism stops feeding, the bin closes, and weighs them by gravity feeding. The material in the measuring bucket is filled into the packing bag. After filling, the bag holder opens automatically. The filled packing bag falls on the conveyor automatically. The conveyor is conveyed back to the sewing machine. The manual assistant sewing bag is exported backward to complete the packaging process.

Functional Characteristics of DCS-Z-S Gravity Feeding Quantitative Packaging Machine for Particulate Material Packaging

Particulate material packaging single bucket scale needs manual assistance in bagging, automatic weighing, entrainment, filling, automatic conveying, sewing package; adopts gravity feeding mode, through instrument control, to ensure the cutting speed and accuracy; adopts high-precision sensors, high intelligent weighing controller, which has high measurement accuracy and stable performance; uses stainless steel to make contact parts with materials, and has high corrosion resistance; And pneumatic components are imported components with long service life and high stability; the control cabinet adopts sealed form and is suitable for harsh dust environment; automatic correction of material overshoot, automatic zero tracking, overshoot detection and suppression, alarm of overshoot and undershoot; optional automatic sewing and wrapping thread breaking function: photoelectric induction automatic sewing and wrapping pneumatic shearing thread, saving manpower.

Technical parameters of DCS-Z-S gravity feeding quantitative packaging machine with single hopper scale for particulate material packaging

Particulate Material Packaging Single Bucket Scale Model Specification: DCS-Z-S

Weighing range of single hopper scale for packing particulate materials: 5-50kg

Particulate Material Packaging Scale Grading Value: 10g

Weighing accuracy of single bucket scale for packing particulate materials: 0.2% F, S

Weighing speed of single hopper scale for packing particulate materials: 300-400 bags/h

Working environment of single hopper scale for packing particulate materials: relative humidity ≤ 90%

Particulate Material Packaging Single Bucket Scale Power Supply: AC380V 50Hz

Particulate Material Packaging Single Bucket Scale Power: 1.3KW

Particulate Material Packaging Single Bucket Scale Air Pressure: 0.4-0.8Mpa

Air Consumption of Particulate Material Packaging Single Bucket Scale: 1m³/h

Video of DCS-Z-S Gravity Feeding Quantitative Packaging Machine for Particulate Material Packaging Single Bucket Scale:
