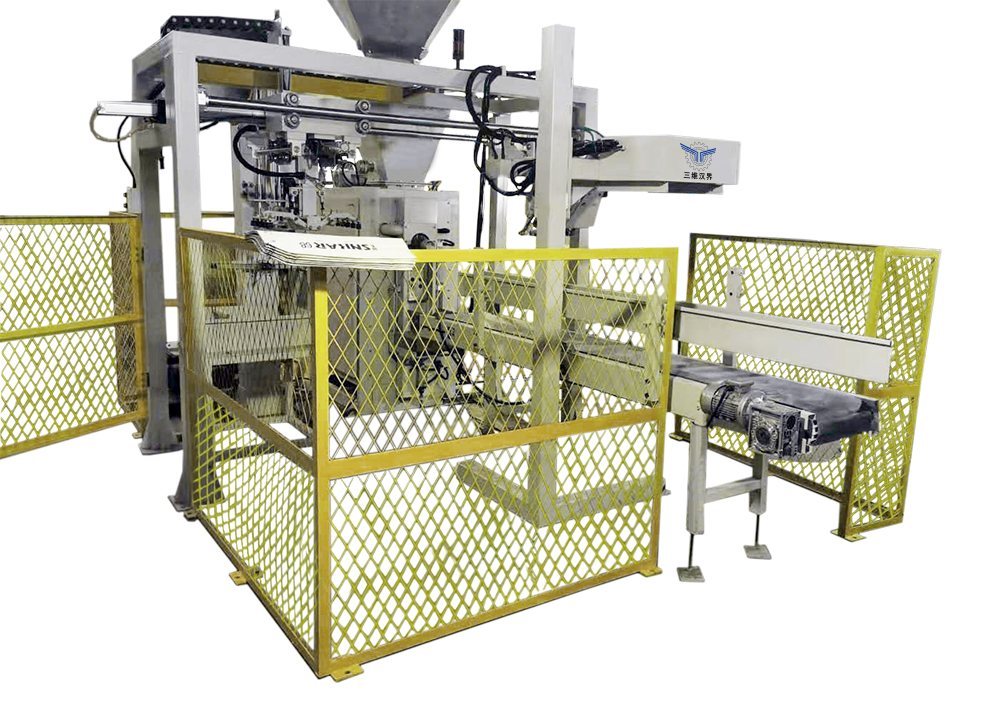

Full-automatic valve bag packing machine
Full-automatic Valve Bag Packing Machine
The full-automatic valve bag packing machine is designed for various powder or ultra-fine powder materials with low stacking density, strong air affinity, and excellent or extremely poor self flow. It is an automatic bagging and quantitative packaging machine. It is mainly divided into: impeller packaging machine, spiral packaging machine, and pneumatic packaging machine.
Features:
Efficient and environmentally friendly new feeder, choose the feeding method
Fully automatic bag taking, bag opening and bag loading mechanism
Automatic heat sealing, perfectly coordinated with the production line.
Technical Parameters
| Model Type | SW-AT-VBM-LX | DSC-QF-25/50 |
| Name | Full-automatic valve packing machine | Manual bagging packing machine |
| Packing Range | 10-50kg | 25-50kg |
| Packing Speed | 120-240bags/h | 100-240bags/h |
| Packing Material | particle，powder, mixture | particle，powder, mixture |
| Quantify precision | 0.2%F、S | 0.2%F、S |
| Packaging bag | Woven/paper bags | Valve bags |
| Feeding method | Determined by materials | Determined by materials |
| Compressed Air | 0.5-0.6MPa, 1.6m3/min | 0.5-0.6MPa, 1.6m3/min |
| Power Supply | 9kw/h, AC380V 50Hz | 2.2kw/h, AC380V 50Hz |
