Type Selection of Lithium Carbonate and Lithium Hydroxide Packaging Machine Equipment
First of all, we need to choose the woven bag form of lithium carbonate packaging. At present, there are two kinds of lithium carbonate Market in China: open pocket and valve pocket, such as Yanhu, Ganfeng, and Tianqi, which use the open pocket.
So what is the requirement of pocket because semi-automatic or full-automatic packaging for lithium carbonate?
Artificial or semi-automatic lithium carbonate packaging. The market is basically a double-layer composite bag, with a single peritoneal woven bag on the outside and a PE bag on the inside. Artificial packaging or semi-automatic packaging requires manual wrapping of inner bags and sewing of outer layers with sewing machines.
The special requirement of full automatic packaging of lithium carbonate for bags is that two or three layers of bags should be glued together inside and outside the bags.

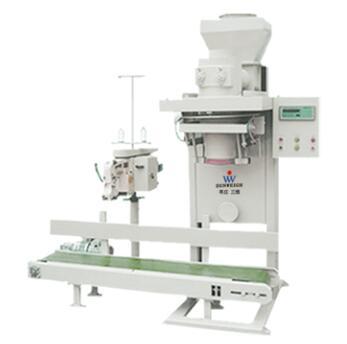

Semi-automatic model of open pocket lithium carbonate and lithium hydroxide
DCS-50F quantitative packaging scale is a new type of high-performance packaging scale developed independently by our company, which has independent intellectual property rights. It is suitable for powder automatic quantitative packaging equipment in flour, starch, feed, food, chemical, light industry, medicine and other industries.
Working Principle of DCS-50F Quantitative Packaging Machine for General Powder Packaging Scale
The main components of the packaging scale are weighing mechanism, feeding mechanism, body frame, control system, conveyor and sewing machine. Manually insert the packaging bag into the feeding opening, and dial the entrainment switch. After the control system receives the bagging signal, the driving cylinder clamps the packaging bag, and at the same time starts the feeding mechanism to feed the silo material into the packaging scale, and the feeding mechanism is double helix. When feeding, when the target weight is reached, the feeding mechanism stops, the packaging bag automatically falls onto the conveyor, and the conveyor conveys the packaging bag backwards to carry out the sewing process to complete the bagging process.
Functional Characteristics of DCS-50F Quantitative Packaging Machine for General Powder Packaging Scale
High precision: high precision weighing controller is selected, which has good reliability.
Good integrity: small area, flexible and convenient installation;
Speed adjustable: screw feeding, fast feeding, slow feeding through the controller to achieve, feeding speed can be arbitrarily set;
Environmental protection operation: closed internal circulation system, effectively prevent dust flying, improve the working environment, protect the health of employees;
Reasonable structure: compact structure, compact size, can be made into fixed or mobile body according to user requirements;
Optional parts: optional flanging machine, automatic sealing machine, dust removal unit.
Technical Parameters of DCS-50F Quantitative Packaging Machine for General Powder Packaging Scale
Model Specification: DCS-50F
Weighing range: 10-50 kg
Division value: 10g
Weighing accuracy: 0.2% F, S
Weighing speed: 200-300 bag/h
Working environment: relative humidity ≤ 90%
Power supply: AC380V50Hz
Air pressure: 0.4-0.8 Mpa
Power: 3.0kw
Air consumption: 1 m³/h

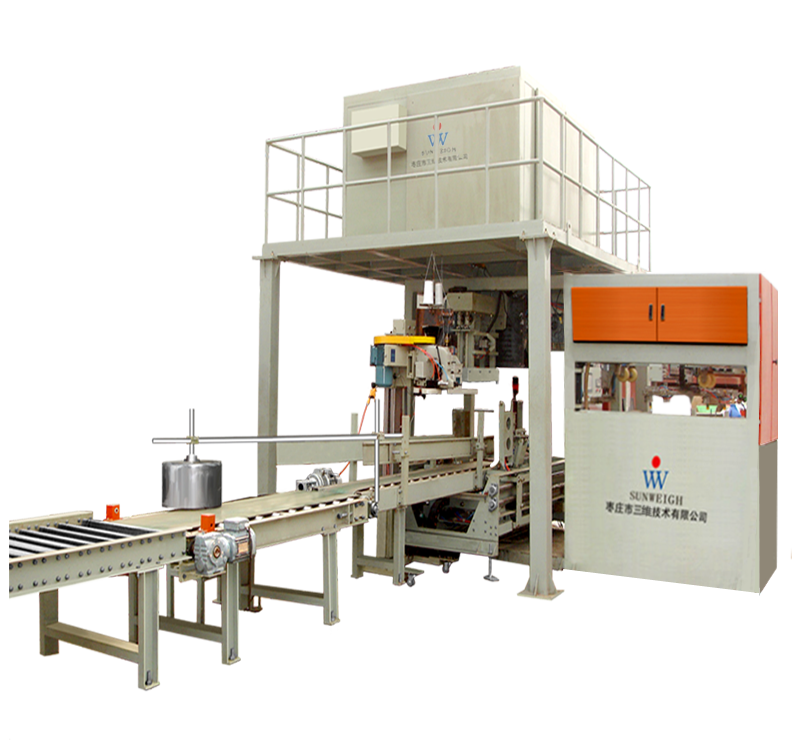

Fully automatic lithium carbonate packing machine
Powder automatic packaging machine is a new generation of powder special intelligent automatic packaging equipment developed by Zaozhuang Three-Dimensional Technology Co., Ltd. This automatic packaging machine adopts the company's unique active screw feeding mode, overcomes the problems of inaccurate weighing, slow packing speed, sticky material and granulation caused by the great change of dry humidity of materials. Powder automatic packaging machine can be used for 80-5000 mesh powder material automatic packaging.
Powder automatic packaging machine SW-ABF-800, this automatic packaging machine mainly consists of automatic bagging mechanism, weighing mechanism, feeding mechanism, body frame, control system, dust removal unit, technical detection unit, folding seam package mechanism, output mechanism and so on. The automatic bag-feeding mechanism automatically packs the bags, picks up the bags and moves them to the bag-feeding mechanism through the tentacle sucker, opens the bags by the upper and lower suckers, and clamps the bags by the bag-feeding manipulator. The mobile manipulator automatically sets the bags at the lower entrance. The detection device detects the bags, the bag-clamping device automatically clamps the bags, and the weighing mechanism receives the bags through the PLC control system. After the bag completes the information, the weighed material is automatically filled into the bag. The feeding mechanism continues to symmetrically measure the material. At the same time, the metal detection mechanism detects whether there are metal substances in the material. According to the results of the detection, it decides whether to carry out the next packaging link or not. Others are automatically removed. Others are waiting to complete the next batch of packaging. After receiving the material filling, the control system waits for the dust removal mechanism to dispose of the dust caused by the packaging process, and sends out a signal. The bag clamp puts down the bag, the bag carriage moves the bag to the folding machine for folding operation, and the sewing machine automatically sews the folded bag and breaks the thread to complete the packaging link. The conveyor conveys the packed bags to the beating mechanism and automatically carries out the whole bag operation, waiting for the final stacking operation.
