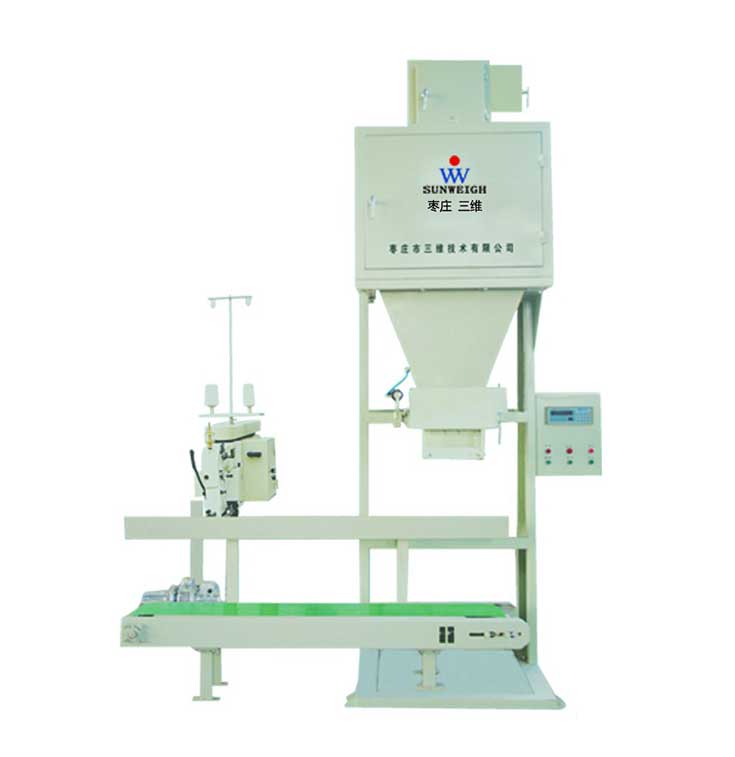

Automatic Packing Machine-Single Bucket Scale
Single bucket automatic packaging machine is one of the quantitative packaging machine produced in Zaozhuang Sunweigh production, which is composed of scale body, quantitative bucket, quantitative mechanism, electric box, pneumatic bag clamp, sensor, weighing micro-computer control instrument, electronic control system, and optional conveyor and sewing machine. Gravity feeding mode is adopted to ensure the speed and accuracy of various materials to meet the requirements of light weight. Industry, chemical industry, metallurgy, building materials, ports, mines, food, grain and other industries weighing, bagging, filling, sewing, packaging, transportation as one of the packaging requirements, and for many years by the majority of customers unanimously praised.
The machine needs manual assistance in bagging, automatic weighing, bag clamping, filling, automatic conveying and sewing. It adopts high precision sensor and high intelligent weighing controller. The measuring accuracy is accurate and the performance is stable. Moreover, the contact part between the scale body and the material is made of stainless steel with high anticorrosive performance. It solves the packaging problem of some chemicals which are easy to corrode and have certain danger, and has a wide range of applications. The operation is relatively simple, and it also meets the strict requirements of the state on material hygiene. The electrical and pneumatic components used are imported components, which have long service life, high stability, and can reduce the later cost. The control cabinet is sealed and suitable for operation in various environmental areas. Material overshoot automatic correction, zero automatic tracking, overshoot detection and suppression, automatic alarm of material overshoot and undershoot, automatic sewing machine can also be selected. Photoelectric automatic sewing machine will automatically sew all the packaging bags that need to be sealed inward and cut the pneumatic thread, which greatly reduces personnel expenditure.
Main technical parameters:
Model Specification: DCS-Z-S
Weighing range: 5-50kg
Grading value: 10g
Weighing accuracy: 0.2% F, S
Weighing speed: 300-400 bag/h
Working environment: relative humidity < 90%
Power supply: AC380V 50HZ
Power: 1.3KW
Air pressure: 0.4-0.8 MPa
Air consumption: m³/h
