GY Type Rigid Impeller Feeder for Fully Automatic Packaging Machine

Zaozhuang Sunweigh Technology Co., Ltd. produces a full-automatic packaging Machine gy type rigid impeller feeder, which is used to continuously and evenly send dry powder materials or small particle materials in the upper bin to the next equipment. GY type rigid impeller feeder belongs to auxiliary conveying equipment of full-automatic packaging Machine and is an important feeding system of full-automatic packaging Machine. GY type rigid impeller feeder of full-automatic packing Machine is widely used as packing machine feeding equipment in material conveying systems of cement, construction, chemical industry, metallurgy and light industry departments.

Application of GY Type Rigid Impeller Feeder for Fully Automatic Packaging Machine;

GY type rigid impeller feeder of full-automatic packaging machine is used to continuously and uniformly send dry powder materials or small particle materials in the upper bin to the next equipment. GY type rigid impeller feeder belongs to auxiliary conveying equipment.

GY type rigid impeller feeder of full-automatic packaging machine is widely used as feeding equipment in material conveying systems of cement, construction, chemical industry, metallurgy and light industry departments.

Main Technical Parameters of GY Type Rigid Impeller Feeder for Fully Automatic Packaging Machine;

Specification	Production Capacity（m³/h）	Impeller speed	Size of Inlet and Outlet （length*width）（mm）	Transmission mode	Cycloid pin gear reduction motor			The external dimension of feeder length * wide * high ( mm )	Weight of feeder
Specification	Production Capacity（m³/h）	Impeller speed	Size of Inlet and Outlet （length*width）（mm）	Transmission mode	Size	Power KW	Speed （ram）		Weight of feeder
GY-Φ200*200	7	34	200*300	Cycloid pin gear reduction motor	BLY18-43	1.1	34	510300300	67
GY-Φ200*300	10	34	200*300		BLY18-43	1.1	34	610300300	77
GY-Φ300*300	23	34	300*300		BLY18-43	1.1	34	690400450	155
GY-Φ300*400	31	34	300*400		BLY18-43	1.5	34	790400450	174
GY-Φ400*400	53	34	400*400		BLY22-43	3	34	830520600	231
GY-Φ400*500	67	34	400*500		BLY22-43	3	34	930520600	268
GY-Φ500*500	106	34	500*500		BLY222-43	4	34	960640760	550

Working Principle of GY Type Rigid Impeller Feeder for Fully Automatic Packaging Machine;

GY type rigid impeller feeder of full-automatic packaging Machine is a kind of quantitative feeding equipment. GY type rigid impeller feeder is equipped with BLY series cycloid pin wheel reducer. The mountain shaft of the reducer is directly and rigidly connected with the main shaft, thus driving the main shaft and impeller to rotate. A plurality of impeller blades are arranged on the impeller, rubber sealing blades are arranged on the impeller blades and are pressed by a pressing plate, and the sealing blades are tightly attached to the inner wall of the shell. When the motor rotates, the main shaft and the blade shaft rotate at the same time, the material enters the impeller groove from the upper bin through the feed inlet, and the rotating impeller brings the material to the discharge outlet to be fed out.

Structure, Overall Dimension and Installation Dimension of GY Type Rigid Impeller Feeder for Fully Automatic Packaging Machine

The main body of GY type rigid impeller feeder for full-automatic packaging machine is assembled from shell, impeller, main shaft, end cover and other parts, with compact structure and beautiful appearance.

The GY type rigid impeller feeder of the full-automatic packaging machine is equipped with PLY series cycloid pin wheel reducer. See the following is the figure for its transmission mode, overall dimensions and installation dimensions:

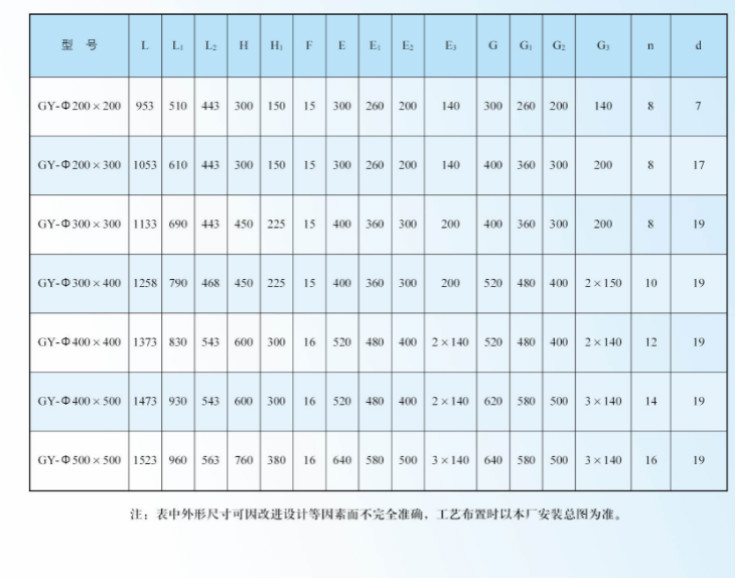

Overall dimensions and installation dimensions of GY type rigid impeller feeder for full-automatic packaging Machine
