Vertical Full-automatic Packaging Machine

      The vertical full-automatic packaging machine is a 20-50Kg large bag packaging machine produced by Zaozhuang Sunweigh Technology Co., Ltd. the full-automatic packaging machine can realize the material packaging of paper bags and woven bags ( coated films ). the whole process is completed independently by the vertical full-automatic packaging machine without the participation of a worker. The vertical packaging machine is not only stable in performance, fast in packaging speed and high in packaging precision, but also can be widely applied to the full-automatic packaging of materials such as grain, feed, starch, fertilizer, chemical industry, medicine, briquette and the like.

Product Introduction of Vertical Fully Automatic Packaging Machine

The topmost end of the vertical full-automatic packaging machine is a hopper, which is convenient for the produced materials to be transported to a storage bin at the top of the full-automatic packaging machine for caching. The electromagnetic valve is arranged at the lower side of the bin to control the blanking of materials, and a weighing device is arranged below the electromagnetic valve. The materials are weighed by the weighing device and then enter the feeding system through the electromagnetic valve at the lower side. Because different materials of different properties adopt different feeding methods. For example, granular materials are fed by gravity, powder materials are fed by spiral, and mixed materials are fed by belt. This method can ensure smooth blanking of materials and avoid material sticking and sticking. Under the feeding system are a blanking port and a bag clamping device, under the blanking port are an automatic bag feeding machine and a conveyor, the automatic bag feeding machine can realize automatic bag feeding and bagging of materials, and the conveyor can automatically output the packaged packaging bags for folding and seaming operations. Finally, the output of the conveyor waits for stacking operation.

Functional Characteristics of Vertical Fully Automatic Packaging Machine

The vertical full-automatic packaging machine has a high height and has strict requirements on the height of the factory building.
The unit is controlled by touch screen, which is convenient for operation, specification switching and maintenance, and is safe and reliable. The whole set of equipment has complete automatic detection procedures, automatic deviation correction, automatic fault detection  for prompt and convenient maintenance. The operation of the equipment is personalized without manual participation, and the fault automatic alarm prompts the operator of the fault location, fault phenomenon and fault detection and processing method.

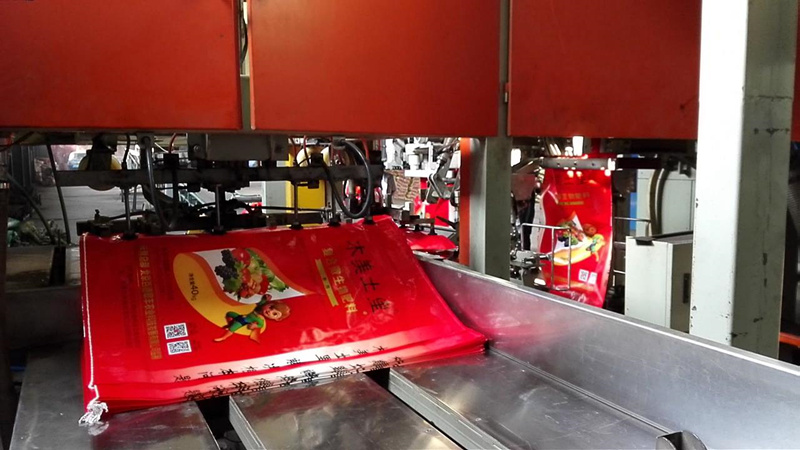

The full-automatic packaging machine can realize the automatic sorting of packaging bags, automatic bag opening and sucking, automatic bag loading, full-automatic weighing and metering, counting, filling, moving and outputting, and automatic folding and sewing into the full-automatic sewing machine. Realize the full automation of the whole packaging process, digitalization and unmanned, environmental protection and low energy consumption.

Technical Parameters of Vertical Fully Automatic Packaging Machine

The packaging scope of vertical full-automatic packaging machine: 20 - 50kg bagged products; Packaging materials: paper bag, woven bag ( coated film ), double-layer composite bag; Packaging speed: 200 - 1200 packs / hour ( packaging speed varies according to materials ); Packaging accuracy: 0.2%; Packaging Material: Different feeding methods can be selected according to different materials. Can package granular materials, powder materials, flake or mixed materials; Compressed air: 0.4 ~ 0.8 MPa, maximum air consumption 1.6 m³/min；; Power supply: 6.2Kw AC380V±10% 50Hz.
