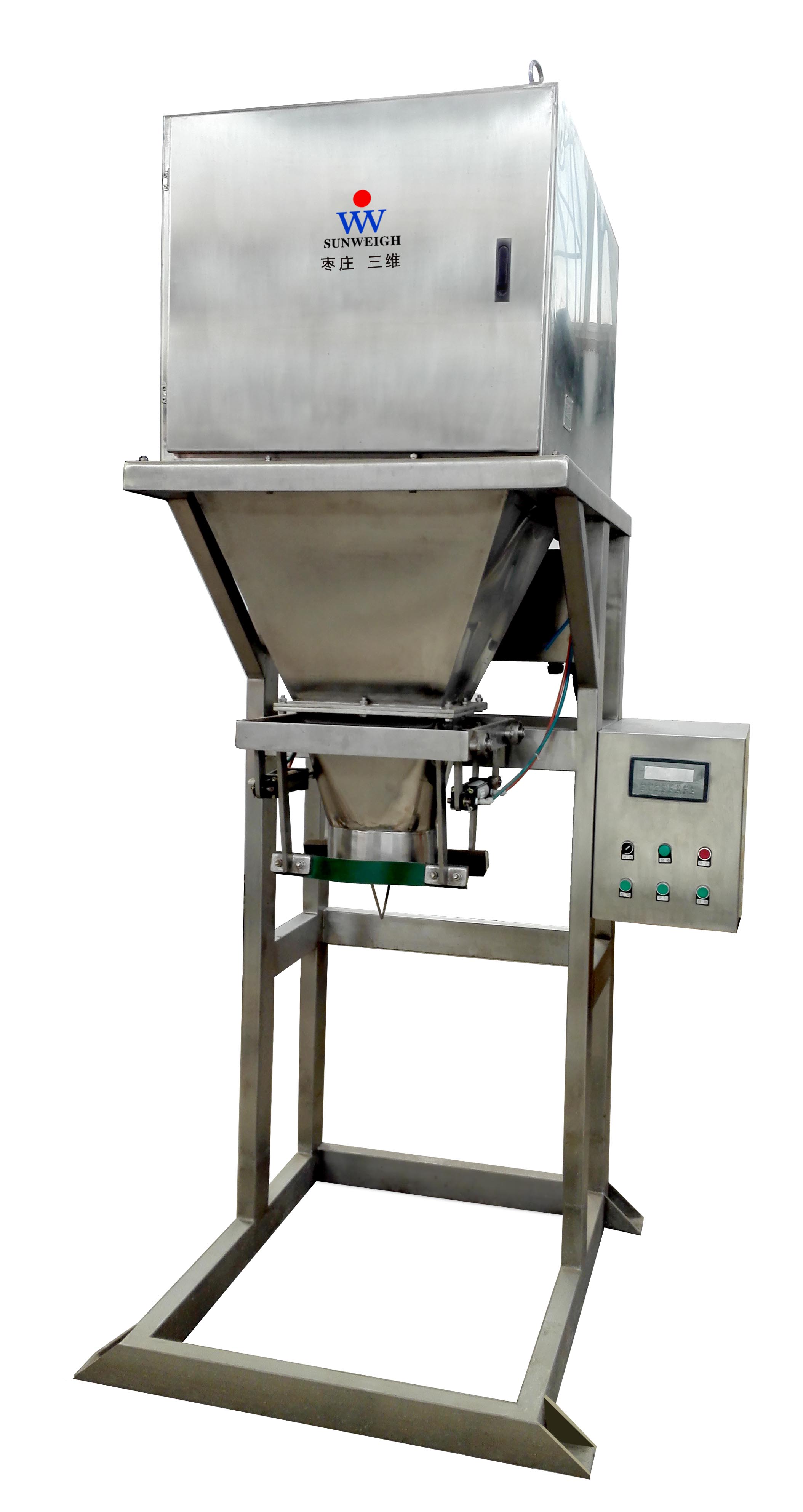

Full Stainless Steel Quantitative Packaging Machine

Applied Scope:

Food grade granular materials, easily corrosive granular materials

Functional characteristics

The gravity feeding method is adopted, the performance is stable and reliable, and the occupied area is small;

Manual assistance in bag loading, automatic weighing, bag clamping, filling, automatic conveying and bag Closing

The digital display screen is more simple and convenient to operate. The whole equipment is of stainless steel design, with high cleaning standard, abrasion resistance, corrosion resistance and long service life.

Adopting high precision sensor and high intelligent weighing controller, the measuring accuracy is high.

Automatic correction of material drop, automatic tracking of zero point, overshoot detection and suppression, alarm of excess and deficiency;
can choose Automatic bag sewing and disconnection function: pneumatic thread cutting after photoelectric induction automatic sewing, saving labor

Working Principle:

  The packaging bag is manually put onto the blanking port, the bag clamping switch is toggled, the air cylinder is driven after receiving the bag clamping signal, the bag clamping device is driven to clamp the packaging bag, the feeding mechanism is started to feed the materials in the storage bin into the weighing hopper at the same time, after reaching the target weight, the feeding mechanism stops feeding, the storage bin is closed, the materials in the weighing hopper are filled into the packaging bag in a gravity feeding mode, the entrainer is automatically opened after filling is finished, the filled packaging bag automatically falls onto the conveyor, the conveyor is conveyed  backward to the sewing machine, the sewing machine is assisted by manpower, and the packaging process is finished.

Equipment Parameter

Weighing Scope:5-50Kg
Scale interval :10g
weighing accuracy:0.2% F S
Weighing Speed 200-300Bag per hour
Working Environment: Humidity less than or equal to 90%
 Power Supply:380V      50HZ
Air Pressure0.4-0.8Mpa
