Automatic Quantitative Packing Machine

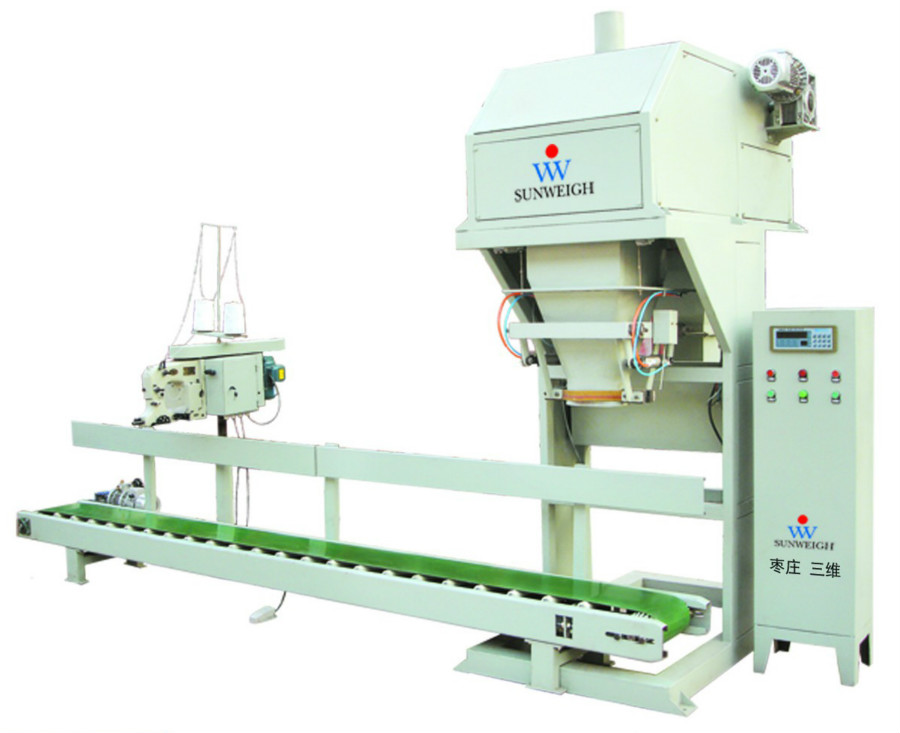

Product Introduction of Automatic Quantitative Packaging Machine

Automatic quantitative packaging machine is a kind of automatic packaging equipment which can realize automatic quantitative packaging for materials developed and produced by Zaozhuang Sunweigh Technology Co., Ltd. The equipment needs manual bagging at the entrance, clamping bags to fix the packing bags, automatic weighing device to weigh the materials automatically. The packaging machine will automatically fill the bags with qualified weighing materials. The conveyor will convey the packed bags to the folding machine. The folding machine will automatically fold the packaging bags. The sewing machine will finish the sewing operation and then the conveyor will pack the bags. It is transported to the palletizing place for palletizing operation. In addition to manual bagging, all other production processes are automatically completed by automatic quantitative packaging machine. It saves the expenditure of manpower, material resources and financial resources, and reduces the production cost of enterprises.

Functional Characteristics of Automatic Quantitative Packaging Machine

1. Using advanced micro-computer control instruments;

2. Functions of automatic error correction, overshoot alarm, automatic fault source diagnosis, etc.

3. Contact parts with materials are made of stainless steel with long service life.

4. Aluminum alloy pole-less speed regulation is adopted in the conveyor motor.

5. Reserve printer interface to print production data such as packing quantity and total weight.

6. Through the automatic control of the instrument, the two-speed feeding can be realized and the cutting speed and precision can be guaranteed.

7. Artificial bagging, double cylinder holding, high degree of automation, reliable operation and simple operation;

8. Instrument has high sensitivity, fast sampling speed, strong software function, standard interface and can communicate with computer.

9. Fast weighing speed, accurate measurement, digital display, intuitive and readable, stable and reliable, easy maintenance;

Technical parameters of automatic quantitative packaging machine

Model Specification: DCS-P-W

Weighing range: 10-50 kg

Grading value: 10g

Weighing accuracy: 0.2% F, S

Weighing speed: 200-300 bag/h

Working environment: relative humidity < 90%

Power supply: AC380V 50Hz

Power: 4.4kw

Air pressure: 0.4-0.8 Mpa

Air consumption: 1m³/h
