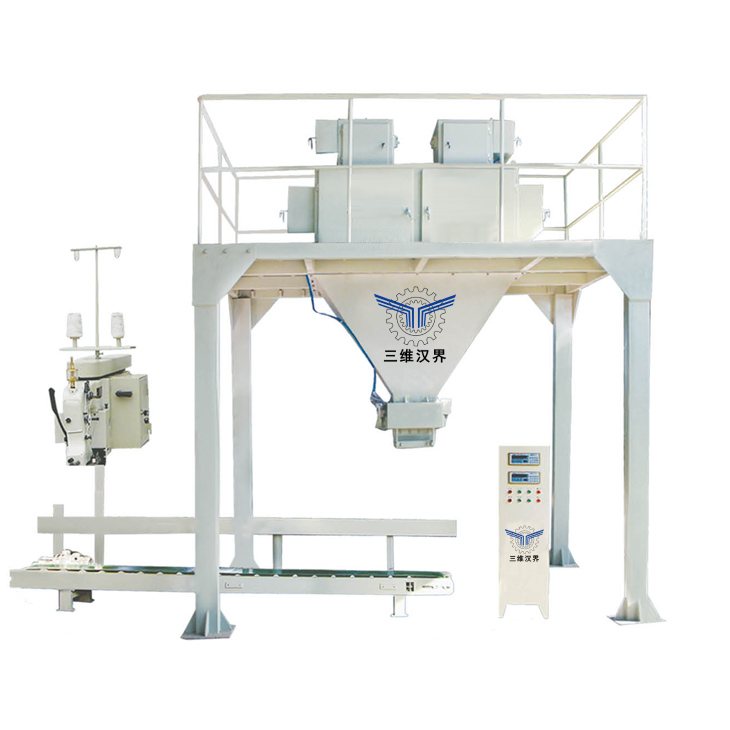

Double bucket automatic packaging machine

Dual bucket scale for packing particulate materials Product Introduction

With the rapid development of modern science and technology and the increasing improvement of packaging technology, higher requirements are put forward for material packaging. It requires not only high speed and precision, but also automation, and even different packaging forms. The DCS-Z-D double bucket weigher for packing particulate materials produced by our company is a fast quantitative packaging unit which integrates weighing, seaming, packaging and transportation. It has been welcomed by users for many years. Widely used in light industry, chemical industry, metallurgy, building materials, ports, mines, food, food and other industries.

Dual bucket scale for packing particulate materials Working principle

Quantitative packing scale for particulate materials needs manual bagging, manual bagging of bags into the lower opening, switching the bag clamping switch, driving the cylinder after receiving the signal of bagging, driving the bag clamping device to clamp the bag, and starting the feeding mechanism to feed the materials in the bin into the weighing hopper. After reaching the target weight, the feeding mechanism stops feeding, the bin closes, and the material is weighed by gravity feeding. The material in the measuring bucket is filled into the packing bag. After filling, the bag holder opens automatically. The filled packing bag falls on the conveyor automatically. The conveyor is conveyed back to the sewing machine. The manual assistant sewing bag is exported backward to complete the packaging process.

Dual bucket scale for packing particulate materials Functional Features

Dual bucket scales for packing particulate materials need manual assistance in bagging, automatic weighing, bag clamping, filling, automatic conveying and sewing.

The double bucket weigher for packing particulate materials adopts gravity feeding mode, which ensures the cutting speed and accuracy through instrument control.

The double bucket scale for packing particulate materials solves some problems in packing special chemical raw materials. It has wide application scope and simple operation.

The double bucket scale for packing particulate materials adopts high precision sensor and high intelligent weighing controller, which has high measurement accuracy and stable performance.

Dual bucket weigher for packing particulate materials is made of stainless steel with high corrosion resistance.

The electric and pneumatic components of the double bucket scale packed with particulate materials are imported components, which have long service life and high stability.

The control cabinet of double bucket weigher for particulate material packaging adopts sealed form, which is suitable for harsh dust environment.

Material error automatic correction, zero automatic tracking, overshoot detection and suppression, overshoot and undershoot alarm of double bucket scale for particulate material packaging;

Double bucket weigher for particulate material packaging can choose automatic sewing and wrapping broken thread function: photoelectric induction automatic sewing and wrapping after pneumatic shearing, saving labor.

Dual bucket scale for packing particulate materials Technical Parameter

Model Specification: DCS-Z-D

Weighing range: 5-50kg

Grading value: 10g

Weighing accuracy: 0.2% F, S

Weighing speed: 600-800bag/h

Working environment: relative humidity ≤ 90%

Power supply: AC380V 50Hz

Power: 1.3KW

Air pressure: 0.4-0.8 Mpa

Air consumption: 1m³/h

Dual bucket scale for packing particulate materials Purchase Guide

1. Before purchasing the double-bucket weigher for packing particulate materials, please confirm the physical characteristics of the filling materials: shape, performance, moisture content, fluidity, temperature, whether there is corrosiveness or oxidation, etc. The equipment is suitable for the fluidity of granular materials.

2. Before purchasing, please confirm the weighing range, accuracy requirement, daily output requirement, and then select the appropriate product.

3. Installation size, whether it has enough installation location

4. The conveying mode of packaging bags after packaging materials, whether the folding seam and the folding seam are needed.

5. Requirements of production environment: whether anticorrosion, explosion-proof, dust-proof and so on are needed.

Video Case of Dual bucket scale for packing particulate materials
