Ammonium chloride quantitative packaging machine

Zaozhuang Sunweigh Technology Co., Ltd. has developed and manufactured packaging equipment since 1996. Now it has been 20 years. The fully automatic ammonium chloride quantitative packaging machine has been developed and manufactured by Zaozhuang Sunweigh Technology Co., Ltd. for many years. It has been welcomed by customers and met the needs of many enterprises. It is widely used in light industry, chemical industry, metallurgy, building materials, chemical fertilizer, mining, food, grain and other industries.

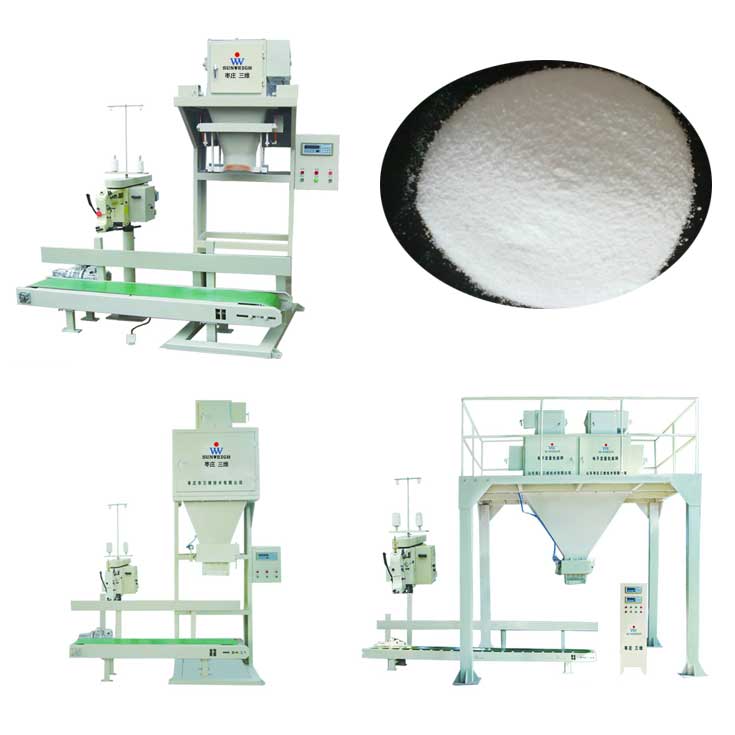

Ammonium chloride quantitative packaging machine is mainly equipped with automatic bagging machine, weighing mechanism, feeding mechanism, body frame, control system, conveyor and sewing machine. The automatic bag feeding machine automatically sets the bags in the outlet, and starts the feeding mechanism to feed the materials into the packing scale. The feeding mechanism is a double helix feeding mechanism. To achieve the target weight, the feeding mechanism stops, and the bags fall on the conveyor. The conveyor carries the bags into the sewing port after the bags are packed, and completes the bagging process once.

Functional characteristics of automatic ammonium chloride quantitative packaging machine:

1. The automatic packaging machine for woven bags can realize automatic packing, automatic opening and absorbing, automatic moving and loading, automatic weighing and measuring, counting, filling, moving output and importing automatic folding and sewing bags of automatic sewing machine. The whole process of packaging is fully automated, digitized and unmanned, environmentally friendly and low energy consumption.
2. The unit is controlled by touch screen. It is convenient to operate, switch specifications and maintain. It is safe and reliable.  The whole set of equipment has complete automatic detection procedures, automatic deviation correction, automatic fault detection prompts, convenient maintenance. The operation of equipment is personalized without manual involvement. The automatic fault alarm prompts the operator to locate the fault and its phenomenon, as well as the method of fault detection and treatment.
3. Ammonium chloride full-automatic packaging machine SW-ABF-800 can be used in any production line that needs packaging bags to realize the automation of material packaging process.

Ammonium chloride automatic packaging machine parameters:

1. Ammonium chloride automatic packaging machine SW-ABF-800 packaging range: 20-50 kg bagged products;
2. Packaging materials: paper bags, woven bags (coating), double-layer composite bags;
3. Packaging speed: 200-1200 packages/hour (packaging speed varies according to materials);
4. Packaging accuracy: 0.2%
5. Packaging materials: according to different materials, different feeding methods can be selected. It can be packaged with particulate matter, powder material, flake or mixture material.
6. Compressed air: 0.4-0.8 MPa, maximum gas consumption 1.6m³/min；

7. Power supply: 6.2 Kw AC380V (+10% 50Hz);
