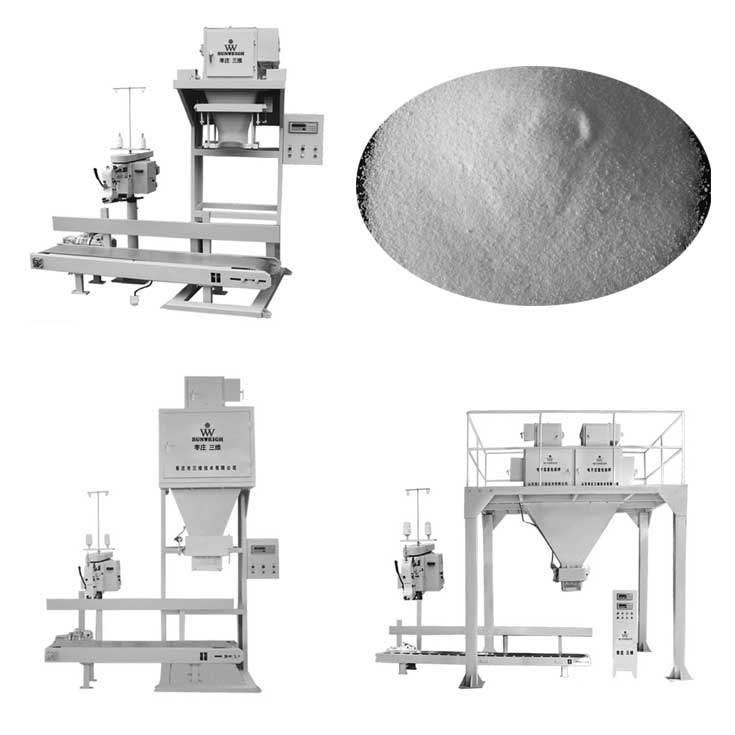

Potassium Fertilizer Quantitative Packaging Machine

Zaozhuang Sunweigh Technology Co., Ltd. has developed and manufactured packaging equipment since 1996. Now it has been 20 years. The semi-automatic potassium chloride double-bucket quantitative packaging machine DCS-Z-D, single-bucket quantitative packaging machine DCS-Z-S and non-bucket quantitative packaging machine DCS-Z-W developed and manufactured by Zaozhuang Sunweigh Technology Co., Ltd. have been welcomed by customers for many years and meet the needs of many enterprises. They are widely used in light industry, chemical industry and Construction materials, fertilizer, mining, food, food and other industries.

The working principle of potassium chloride quantitative packaging machine is as follows:

Potassium chloride quantitative packaging machine needs manual bagging, manual bagging of bags into the lower opening, switching the bag clamping switch, controlling the cylinder after receiving the signal of bagging, driving the bag clamping device to clamp the bags, and starting the feeding mechanism to feed the materials in the bin into the weighing hopper. After reaching the target weight, the feeding mechanism stops feeding, the bin closes, and the weighing hopper is driven by gravity feeding. After filling, the belt opener opens automatically, the filled bag falls on the conveyor automatically, and the conveyor conveys back to the sewing machine, which is assisted by manual sewing bag and outputs back to complete the packaging process.

Functional characteristics of semi-automatic potassium chloride quantitative packaging machine:

1. The machine needs manual assistance in bagging, automatic weighing, bag clamping, filling, automatic conveying and sewing.

2. Gravity feeding is adopted to ensure the cutting speed and accuracy through instrument control.

3. Solve some special chemical raw material packaging problems, wide application scope, simple operation;

4. Adopting high precision sensor and high intelligent weighing controller, the measurement accuracy is high and the performance is stable.

5. The contact part with material is made of stainless steel with high corrosion resistance.

6. Electrical and pneumatic components are imported components with long service life and high stability.

7. The control cabinet is sealed and suitable for harsh dust environment.

8. Automatic correction of material overshoot, automatic zero tracking, overshoot detection and suppression, over and under alarm;

9. Optional automatic sewing and wrapping thread breaking function: Photoelectric induction automatic sewing and wrapping after pneumatic shearing, saving labor.

Semi-automatic potassium chloride quantitative packaging machine parameters:

Type specification	Weighing range	Division value	Weighing accuracy	Weighing speed	Work environment	Power source	Power	MPa	Air consumption
DCS-Z-D	5-50kg	10g	0.2%	600-800b/h	Humidity≤90%	380V 50HZ	1.3KW	0.4-0.8Mpa	1㎥/h
DCS-Z-S	5-50kg	10g	0.2%	300-400b/h	Humidity≤90%	380V 50HZ	1.3KW	0.4-0.8Mpa	1㎥/h
DCS-Z-W	5-50kg	10g	0.2%	200-300b/h	Humidity≤90%	380V 50HZ	1.3KW	0.4-0.8Mpa	1㎥/h

For more questions about potassium chloride quantitative packaging machine, please call Zaozhuang Sunweigh Technology Co., Ltd. Tel: 86-0632-3359032
