Putty Powder Quantitative Packaging Machine

The putty powder quantitative packaging Machine produced by Zaozhuang Sunweigh Technology Co., Ltd. is aimed at putty powder, lime-calcium powder, dry powder mortar, lime powder, gypsum powder, etc. It has the advantages of fast packaging speed, simple operation, high precision, safety and environmental protection, and the packaging speed is 200-300 packages/hour.

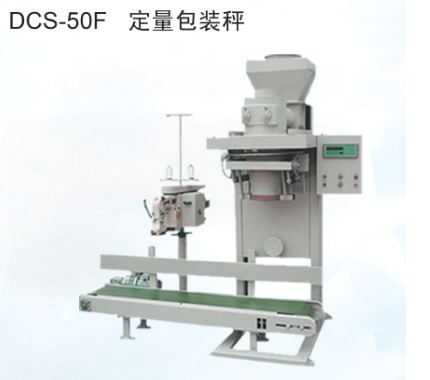

Introduction of Putty Powder Quantitative Packaging Machine DCS-50F

Putty Powder Quantitative Packaging Machine DCS-50F is a new type of high-performance packaging Machine independently developed by our company and with independent intellectual property rights. It is suitable for automatic quantitative powder packaging Machines in flour, starch, feed, food, chemical industry, light industry, medicine and other industries. Putty powder quantitative packaging Machine DCS-50F is mainly equipped with weighing mechanism, feeding mechanism, body frame, control system, conveyor and sewing machine, etc. It needs manual bagging.

Principle of Putty Powder Quantitative Packaging Machine DCS-50F

Before packaging, the target weight should be set manually on the instrument. Customers can adjust themselves according to their needs. They can put the bags into the lower outlet manually, switch the clamp switch, drive the cylinder after the control system receives the signal of the bags, clamp the bags by the clamp, and start the feeding mechanism to feed the materials into the packing Machine. The feeding mechanism is a double helix feeding mechanism. When the target weight is reached, the helix will drive the cylinder. Stop feeding, the belt opener opens automatically, the packing bag falls on the conveyor automatically. The conveyor carries the packing bag back to carry on the artificial auxiliary seam opening, and then carries it back to complete a bag filling process.

Functional Characteristics of Putty Powder Quantitative Packaging Machine DCS-50F

Putty powder quantitative packaging Machine is easy to operate: through the instrument to adjust weight, simple and fast operation;

Putty powder quantitative packaging Machine has high precision: high precision weighing controller is selected, and the reliability is good.

Putty powder quantitative packaging Machine has good integrity: small area, flexible and convenient installation;

Putty powder quantitative packaging Machine speed adjustable: screw feeding, fast feeding, slow feeding through the controller to achieve, feeding speed can be arbitrarily set;

Environmental Protection Operation of Putty Powder Quantitative Packaging Machine: Close the internal circulation system, effectively prevent dust flying, improve the working environment, protect the health of employees;

Putty powder quantitative packaging Machine has reasonable structure: compact enough, compact size, can be made into fixed or mobile body according to user requirements;

Putty Powder Quantitative Packaging Machine Options: Random selection of folding machine, automatic sealing machine, dust removal unit.

Technical Parameters of Putty Powder Quantitative Packaging Machine DCS-50F

Machine Model Specification: DCS-50F

Weighing range: 10-50 kg

Grading value: 10g

Weighing accuracy: 0.2% F, S

Weighing speed: 200-300 bag/h

Working environment: relative humidity ≤90%

Power supply: AC380V50Hz

Air pressure: 0.4-0.8 Mpa

Power: 3.0kw

Air consumption: 1m³/h
