Pigment powder quantitative packaging machine
Zaozhuang Sunweigh technology produces professional quantitative packaging machine equipment. DCS-25F-CX-CC, which produces pigment powder quantitative packaging machine, is a new generation of special equipment for superfine powder packaging developed by our company. it overcomes the problems of inaccurate weighing, slow packaging speed, sticking and punching caused by large changes in dry humidity of materials, and is suitable for the packaging of 80 - 2000 mesh powdery materials. It is mainly equipped with weighing mechanism, feeding mechanism, machine frame, dust removal unit, control system, conveyor and sewing machine. Packaging pigment powder includes: propylene pigment, gouache pigment, inorganic pigment, etc.
DCS-25F-CX-CC Working Principle of Pigment Powder Quantitative Packaging Machine: The pigment powder quantitative packaging machine needs to manually insert the packaging bag into the blanking port, toggle the entrainment switch, the control system drives the air cylinder after receiving the bagging signal, the entrainer clamps the packaging bag, and at the same time, the feeder mechanism is started to feed the material from the storage bin into the packaging machine. The feeding mechanism is double helix feeding. When the target weight is reached, the feeding mechanism stops, the entrainer automatically opens, the packaging bag automatically falls onto the conveyor, and the conveyor conveys the packaging bag backward to sew the mouth, completing a bagging process.
Functional Characteristics of DCS-25F-CX-CC for Pigment Powder Quantitative packaging machine
Pigment powder quantitative packing scale can pack various powdery pigment powder and toner;
The pigment powder quantitative packaging machine has a complete dust treatment device.
The pigment powder quantitative packaging machine overcomes the inaccurate weighing caused by the problems of sticky materials and loose materials caused by large water content of materials;
The whole mechanical structure has been patented by the state, which overcomes the problems of material punching, etc.
Optional: optional hemming machine and automatic seaming machine.
DCS-25F-CX-CC Technical Parameters for Pigment Powder Quantitative Packaging Machine
Model specification: DCS-25F-CX-CC
Weighing range: 10-50kg
Dividing value: 10g
Weighing accuracy: 0.2%F, s
Weighing speed: 150-240bag/h
Working environment: relative humidity ≤ 90%
Power supply: AC380V50Hz
Air pressure: 0.4-0.8Mpa
Power: 4.2kw
Air consumption: 1m³/h

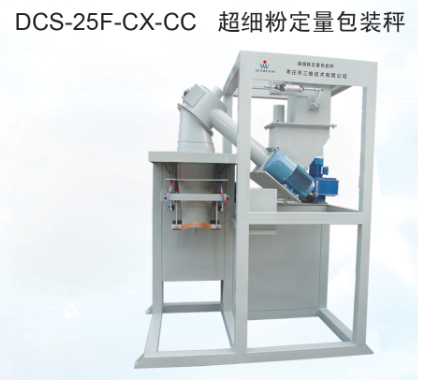

定量包装秤DCS-25F-CX-CC
