Application of Ton Scale in the Field of Magnetic Materials
The tonnage bag scale, also known as the big bag packing scale, mainly contains 500-2000 kg of materials. The tonnage scale developed and produced by Zaozhuang Sunweigh Technology Co., Ltd. can be divided into two categories: granular tonnage scale and powder tonnage scale. The magnetic material introduced in this paper is iron powder of 100 meshes. Although it is powder, due to its good fluidity, the gravity-feeding granular tonnage scale equipment is adopted.

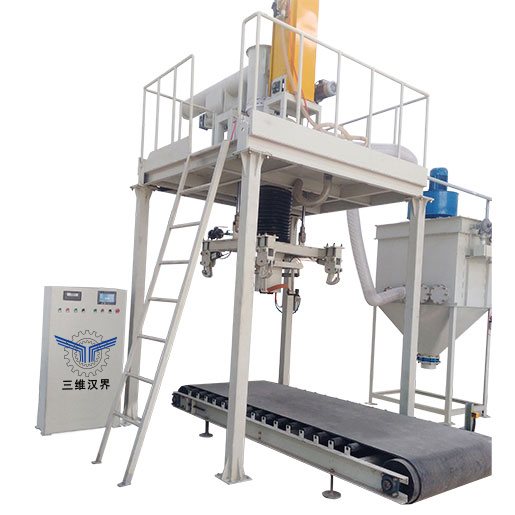

Introduction of Magnetic Iron Powder Ton Scale Products
The magnetic iron powder tonnage bag scale is a kind of granular tonnage bag scale. The packaging equipment is changed to gravity feeding mode. First, the iron powder is conveyed to the tonnage bag bin by the twisted dragon through the screw feeding mode. Then the four bags of the tonnage bag are artificially hung on four hooks. The solenoid valve opens the discharging material and fills the tonnage bag. The weighing device continuously weighs the tonnage bag and waits for the weight of the tonnage bag. After reaching the qualified weight, the solenoid valve closes, the packing bag falls on the conveyor, the workers take off the bag system, the conveyor outputs the iron powder tonnage bag, and finally the tonnage bag is transferred to the transport vehicle by the air crane or forklift. In addition to manual bagging, the whole process is completed by the tonnage-bag scale independently. The emergence of the tonnage-bag scale meets the needs of large bags of material packaging and brings convenience to many enterprises. Due to the flexibility and convenience of installation on site, the ton-bag scale can be adjusted to local conditions to the maximum extent and the location can be reasonably arranged. The packaging equipment is widely used in the packaging of grain, chemical industry, feed, magnetic materials and other materials.
Functional characteristics of magnetic iron powder tonnage scale
Pneumatic packaging only needs to touch the stroke switch.
After packing, the bag holder and the hook mechanism are automatically separated without any other operation.
It integrates fine and coarse feeding functions and effectively solves the requirement of speed and precision in packaging process.
For bags of different weights in the packaging process, it can automatically peel and clear, and has the function of automatic data correction to ensure the accuracy requirements.
According to the requirements, it can be equipped with shaking package function or flexibly adjust the standby and hook height.
The system has two operation modes, automatic and manual, which can be switched at will.
Technical parameters of magnetic iron powder tonnage scale
Model Specification: DCS-1000-DN-T
Weighing range: 500-2000 kg
Weighing accuracy: 0.1% F, S
Weighing speed: 25-40 bag/h
Air consumption: 9m³/h
Power supply: AC380V 50Hz
Power: 3.7 kw
Air pressure: 0.5-0.7 Mpa
Sensor Form: Upper Sensor
The tonnage-bag scale is specially used for fast and large-capacity quantitative weighing and packaging of solid particulate materials and powder materials. It is a necessary special equipment for large-scale soft bag packaging in the world at present.
