Customer case Where you are now:Home page > Customer case >

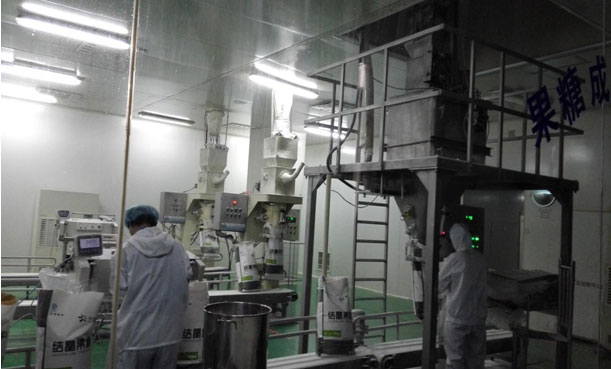

Binzhou Starch Sugar and Crystalline Fructose Packaging Production Line

一、Equipment composition of starch sugar and crystalline fructose packaging production line:

According to the actual production needs of users, our company designs starch sugar and crystalline fructose packaging production line. The main equipment includes: storage bin, throat metal detector, mixing buffer bin, DCS-Z-S packaging scale, conveyor, weight checking device, thermal combination device, seam packaging device and so on. Storage bin: material temporary storage device, according to the size of output to determine capacity.

Throat metal detector: Because the material is used as food additive, the metal impurities in the material must be removed. Special software design is adopted for the straight-down occasion to improve the detection performance.

Mixing Buffer Warehouse: It is used for the front end of the feeding port of the packing scale. It uses an external deceleration motor to start when the weighing feeding device works, so as to prevent the material from sticking, sticking and bulging.

DCS-Z-S Packaging Scale: It has the characteristics of fast speed and high precision. It is a fast quantitative packaging unit which integrates weighing, sewing, packaging and transportation. The whole product is made of 304 food grade stainless steel. The material contact part is made of 316 stainless steel. The weld seam is polished completely and no material is stored. Food grade silica gel pads are added to the inner cracks, and threading pipes are processed in the pneumatic and power line scales, and the length is reduced as much as possible.

Weight Checking Device: Suitable for automatic weight testing of heavy-weight packaging products. Effective re-inspection of packaging bags to determine whether they are qualified or not, and to avoid weight errors on the production line exceeding the prescribed product outflow.

Hot seam packaging device: Because of the moisture-proof requirement of materials, the device first heat-bonded the inner plastic film of the packaged bag filled with materials, and then the hot-bonded bags were conveyed to the seam bag of the seam machine by the conveyor to complete the whole packaging process.

二、The main configuration of starch sugar and crystalline fructose packaging production line:

The main parts and components of the equipment are imported or domestic first-line brand parts, which have long service life and high stability.

Cylinder: Taiwan Yadeke

Solenoid Valve: Festo, Germany

Inverter: Mitsubishi, Japan

Weighing Sensor: Avionics Survey

Instrument: Gemman, Canada

Solenoid Valve: Festo, Germany

三、Main parameters of starch sugar and crystalline fructose packaging production line:

Packing scale weighing range: 10-50Kg, rating value: 10g, weighing speed: 300-400 packs/hour, weighing accuracy: 0.2%, system electrical: AC380V, 50Hz, system gas source: 0.4-0.8MPa, working environment: relative humidity ≤90%.

四、 Installation and after-sales service of starch sugar and crystalline fructose packaging production line:

1. Construction: The company is responsible for field installation and commissioning.

2. Acceptance and acceptance: After installation and commissioning are completed, the customer accepts the acceptance, and the Supplier personnel can leave the site only after they are qualified.

3. Quality guarantee period: one year, in case of non-man-made equipment damage during the quality guarantee period, our company maintains the equipment free of charge. After the quality guarantee period, we provide lifelong maintenance for the equipment.

4. After-sales service: During the warranty period, the equipment has an emergency failure or shutdown. Within 2 hours after receiving the user's request for help information, the list of after-sales personnel is provided. The equipment failure is judged by the user's technical personnel's oral description and the solution is given.

5. Technical Commitment: Within 10 days after the signing of the contract, the Contractor shall provide the technical groove layout and pile load, general layout of the system, as well as the silo and steel structure manufacturing and processing drawings (self-made by the buyer). Free training and guidance for the personnel of the demander's post, including operation, commissioning and equipment maintenance.
